With cut-out table for pallet truck
1- or 2-motors PRE-STRETCH system
Anti-fall system on the reel carriage
Electronic control panel
Customizable wrapping programs

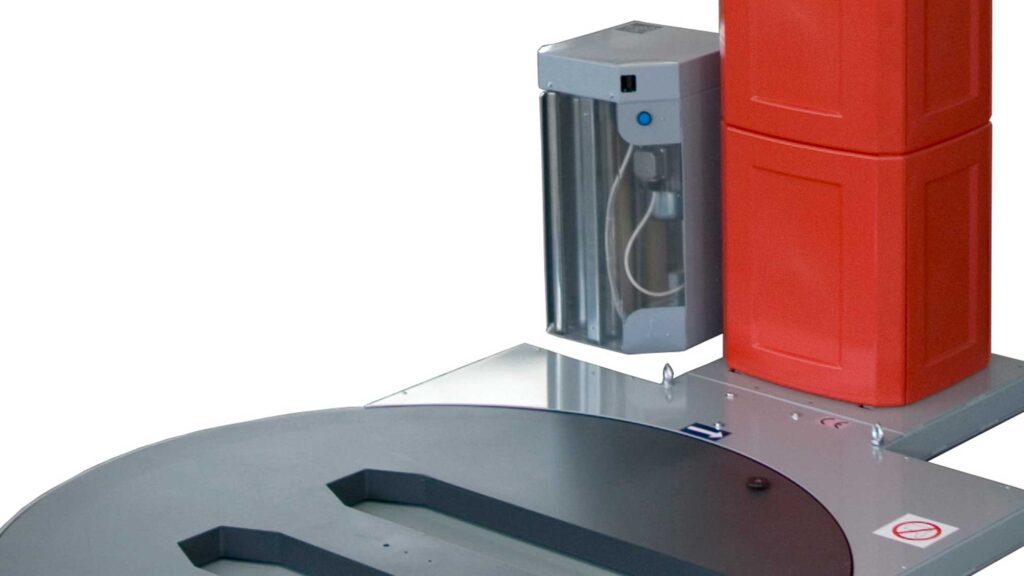

Cut-out table for pallet truck
Variable rotating table and film carrier speeds
Pallet height detected by photocell
Product stability ensured
Extremely easy to install and use
Minimum maintenance required
ON REQUEST
Table diameter increased
Smart touch control panel
Load capacity up to 2000 kg
...and much more
Playlist
DESIGNED AND PRODUCED BY EFFE3TI
Pallet wrapping machine equipped with motorized pre-stretch (in the version with 1 or 2 motors) for the film tension, which allows the maximum saving of consumables (up to 400%).
With a production capacity suitable for medium-sized companies, the Spinny S300 is an extremely robust pallet wrapping machine, requires extremely low maintenance and is easy to use.
SPECIFICATIONS
- Rotating table diameter 1500 mm, 1650 mm, 1800 mm, 2200 mm; load up to 2000 kg
- Distance between column and rotating table 500 mm
- Winding height 2100 mm, 2600 mm, 3100 mm detected by photocell
- Table rotation regulated by inverter
- Table stop position controlled by sensor
- Variable speed of the film carrier
- Film carrier fall prevention system
- Work cycles controlled by PLC and electronic board
