Pallet Wrapping Machine large size

Reel holder with MOTORIZED PRESTRETCH with 1 or 2 motors.

TOUCH-SCREEN control panel
Adjustable arm, trolley and roller speed

AUTOMATIC film clamping and cutting system
Pallet height on request
0
Standard winding height
0
Up to three years warranty
0
Perfect for packaging line automation
Automatic film cutting release clamp
ON REQUEST
Hot film welding
Motorized or pneumatic press
Double motorized pre-stretch

DESIGNED AND MADE BY EFFE3TI

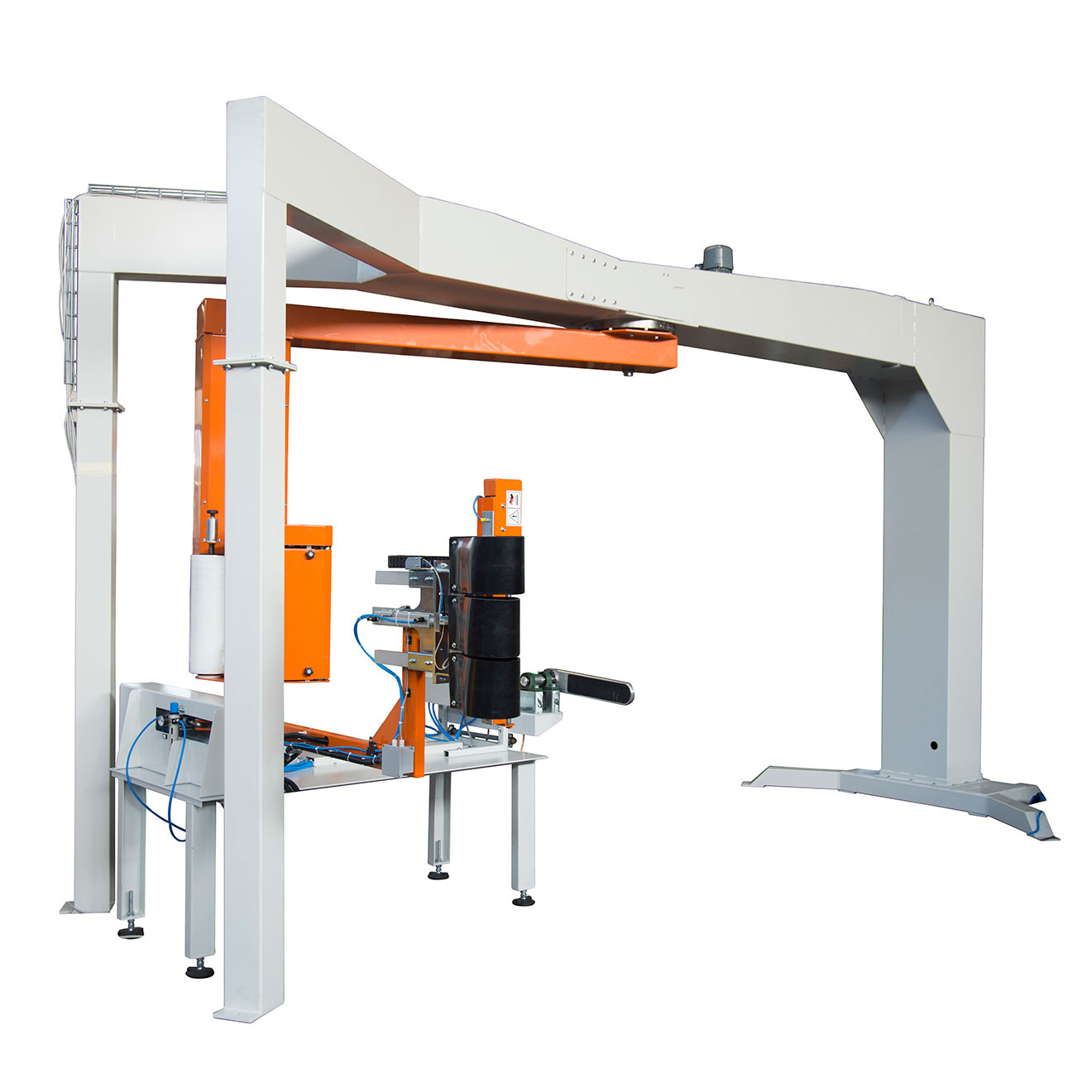

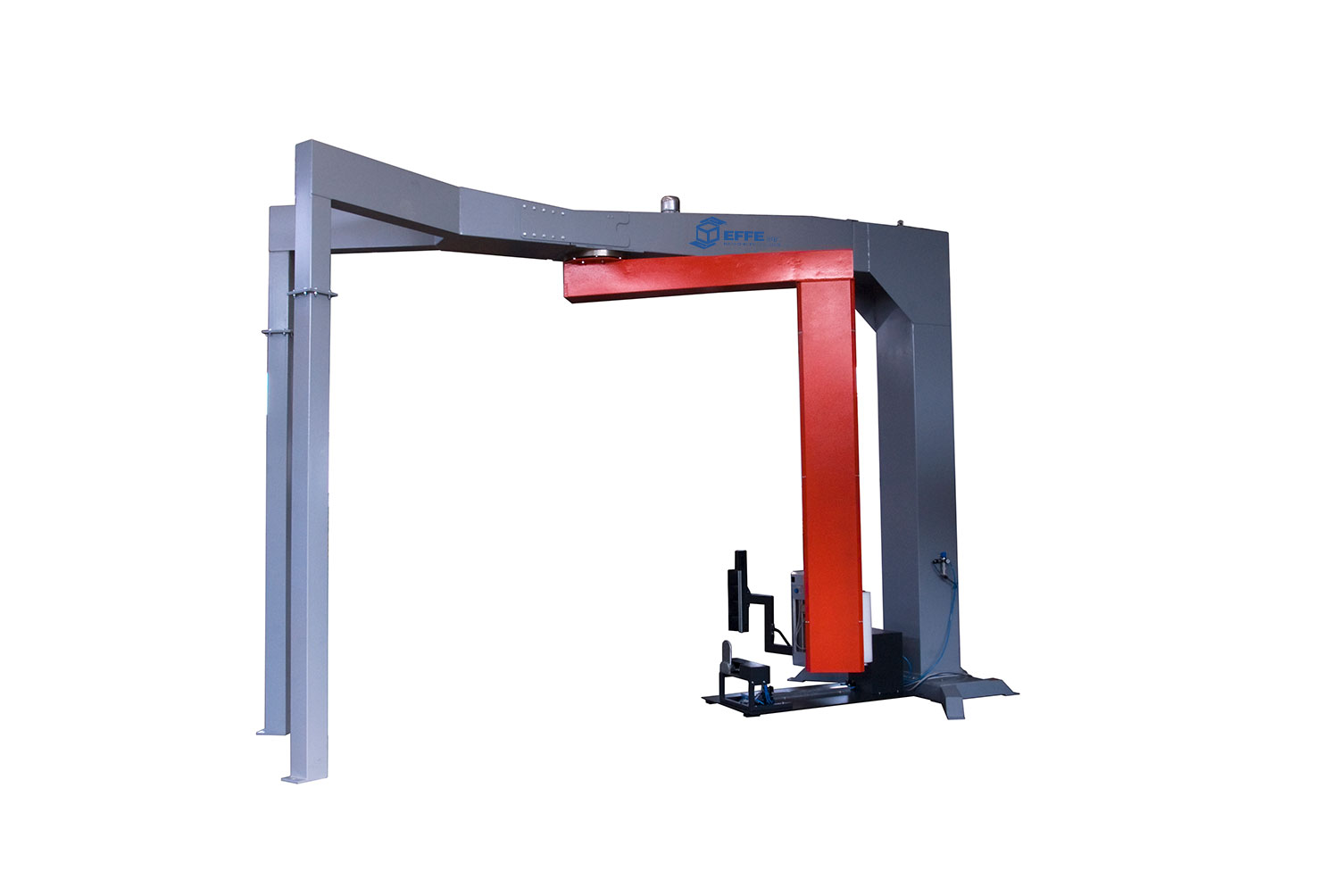

The largest rotating arm wrapping machine in production, designed for automatic packaging lines, suitable for wrapping large pallets with stretch film.
TECHNICAL SPECIFICATIONS
- The machine has a touch-screen control panel.
- The model is designed for wrapping, with stretch film, pallets with dimensions over 1200 x 1200 mm
- Standard machine pallet height h=2100mm detected by photocell; special heights up to 3000 mm on request
- The rotation speed of the arm is regulated by an inverter (rotation adjustable from 4 to 15 rpm)
- Customizable reel carriage speed regulated by inverter
- Anti-fall system of the reel trolley
- Automatic film clamping and cutting system
