With open table for pallet truck
ADVANCED version with electromagnetic film stretching
Anti-fall device on the reel trolley
PLUS version with mechanical film stretching
Anti-fall device on the reel trolley
Open turntable for pallet truck entry

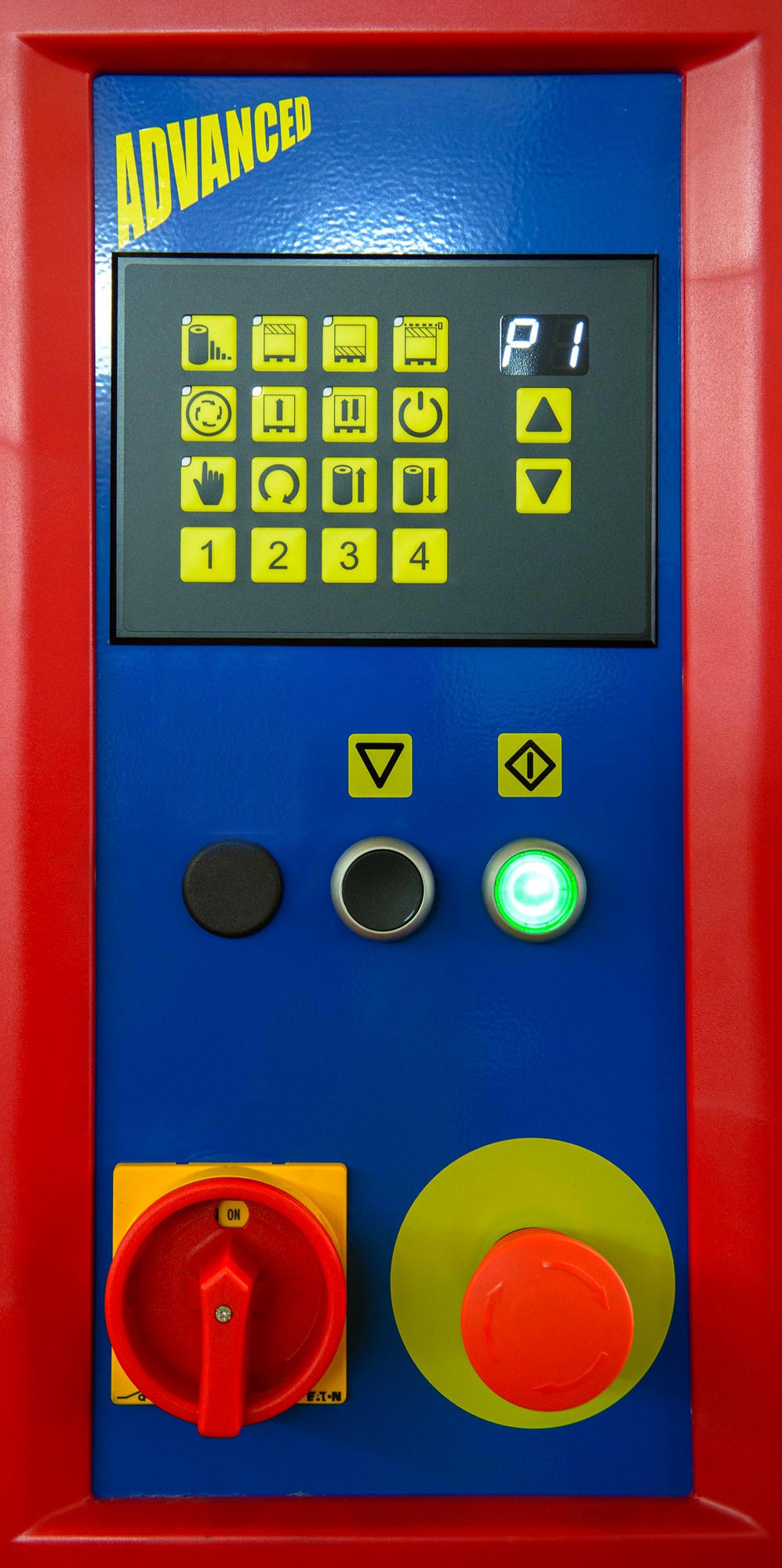

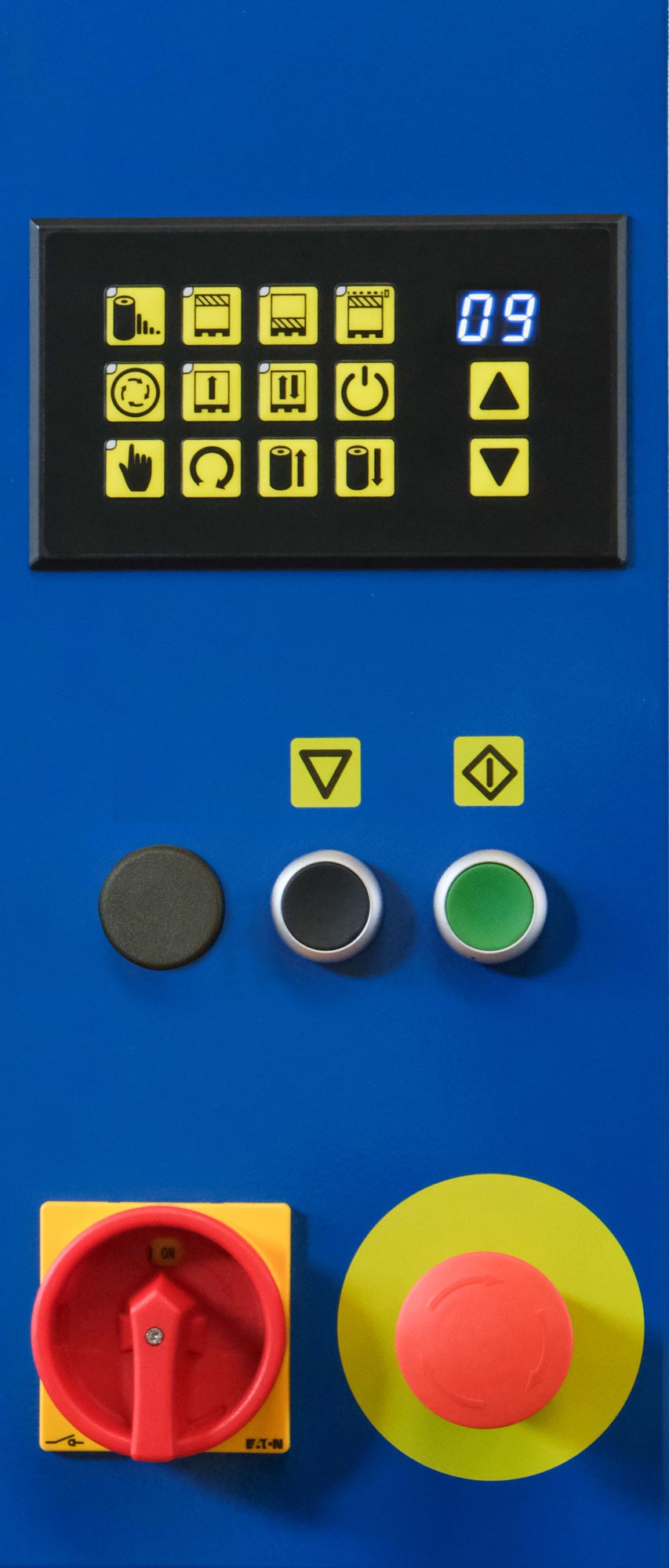

Electronic control panel
Load capacity kg
0
Winding height mm
0
Up to three years warranty
0
ON REQUEST
SMART TOUCH control panel
Winding height up to 3800 mm
Stabilizing press
…and much more!
DESIGNED AND MADE BY EFFE3TI

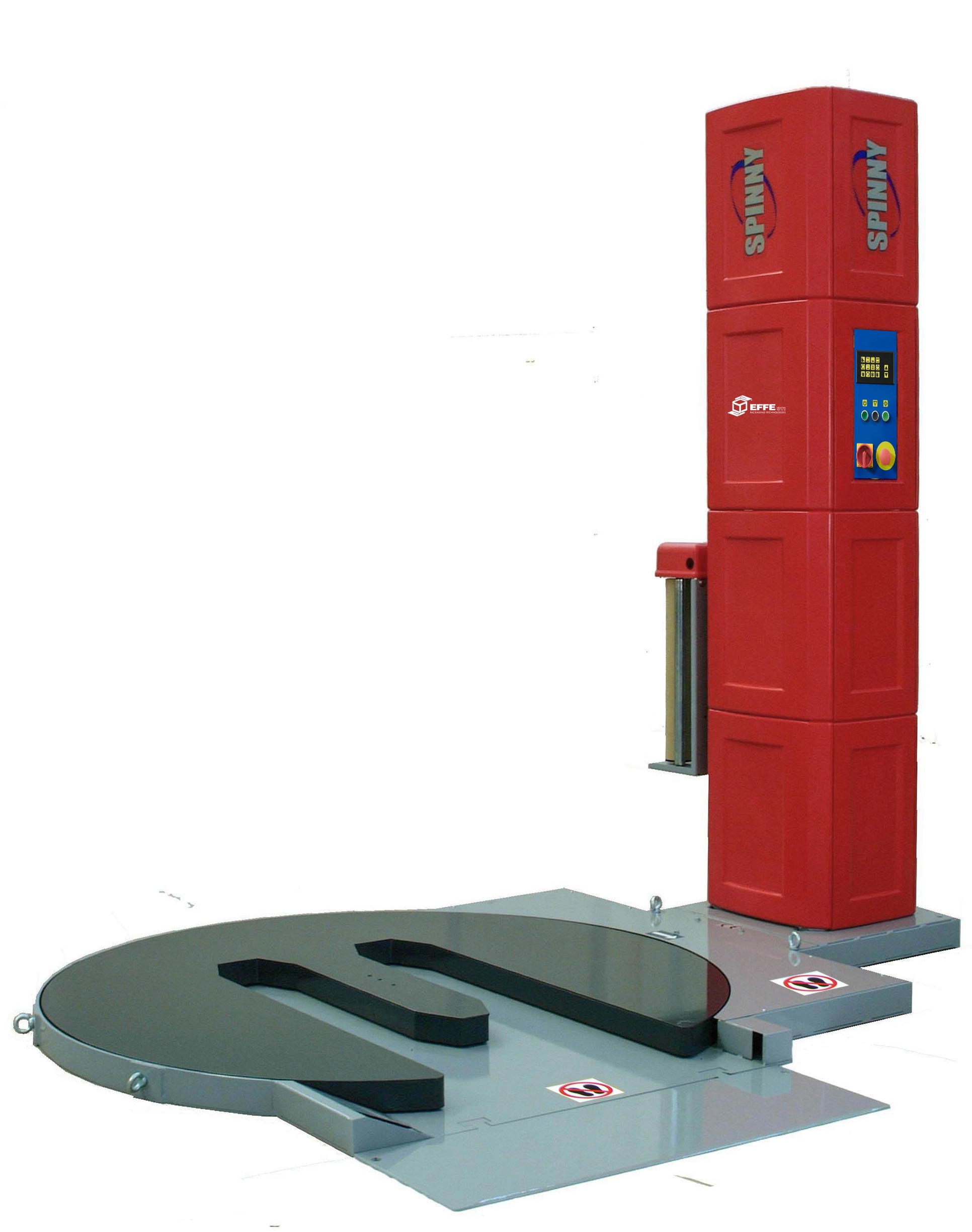

Pallet wrapper equipped with mechanical or electromagnetic brake for film tension on the product pallet. Safe wrapping with a reliable machine and with practically zero maintenance. The TP version is equipped with an open table for the insertion of the pallet truck.
TECHNICAL SPECIFICATIONS
- Rotary table diameter 1500 mm capacity 1200 kg
- Distance between column and rotary table 500 mm
- Wrapping height up to 2100 mm detected by photocell
- Separate programming of high and low reinforcement rounds
- Table rotation regulated by inverter from 5 to 12 rpm
- Sensor controlled table stop position
- Customizable variable carriage movement speed
- High and low speeds programmable separately
- Anti-fall system for reel trolley
- Electronic control panel with simple, double wrapping cycle with the possibility of stopping for positioning the upper cover and manual
- Manual stop of the reel carriage for reinforcement turns
- Voltage: 230 V single phase. On request, 400-415 V three phase 10%
- Frequency: 50 Hz
- Installed power: 0.7 kW
- Auxiliary power supply: 24 V DC
