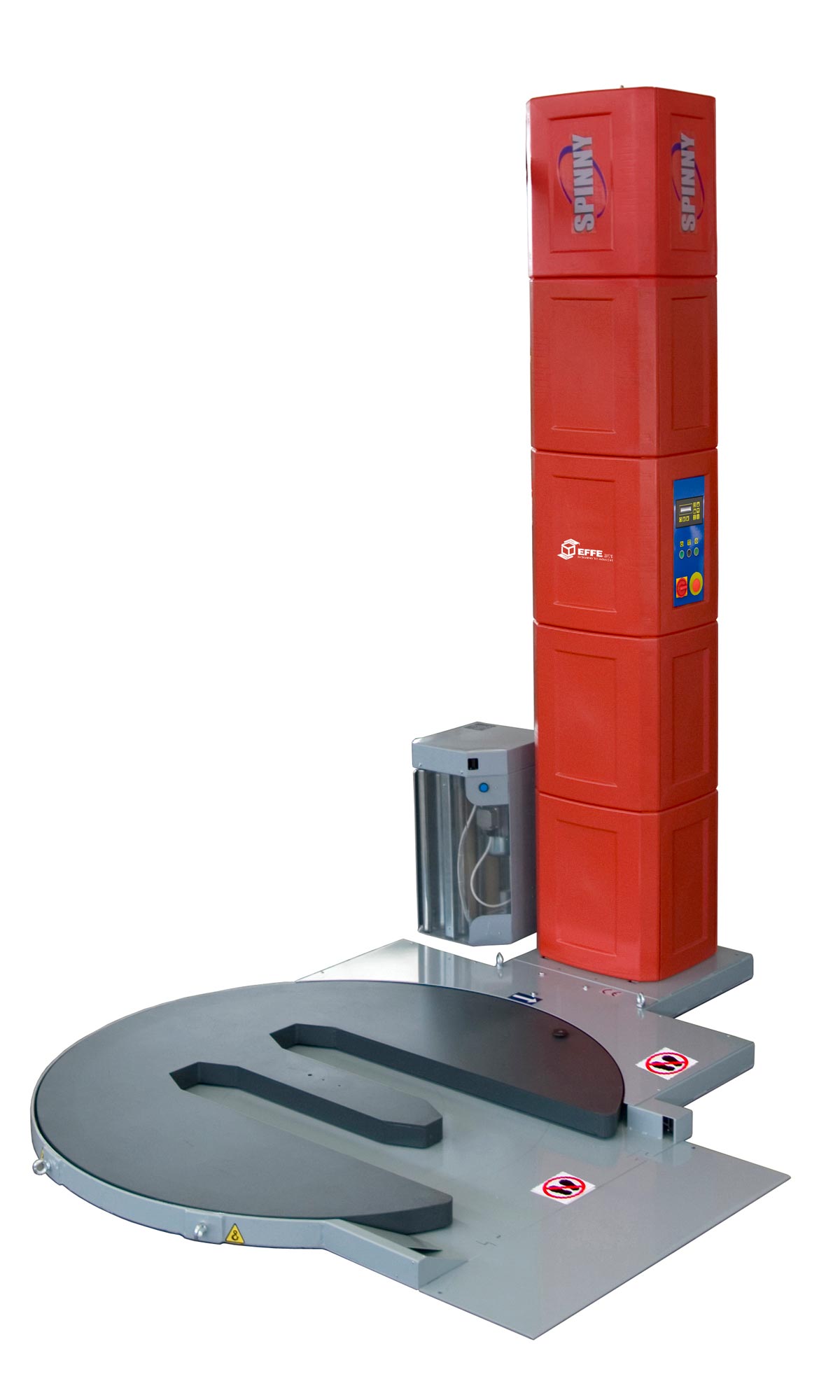

Spinny S300-TP Semi-automatic Wrapping Machine

With open table for pallet truck

effe3ti motorized pre-stretching

Reel holder with MOTORIZED PRESTRETCH with 1 or 2 motors.

Anti-fall system on the reel trolley

spinny pallet wrapper

Electronic control panel

Customizable work programs

spinny pallet wrapper with pallet truck board

Open table for pallet truck entry

Variable speed of rotary table and reel carriage

Pallet height detected by photocell

Standard winding height
0
Load capacity kg
0
Up to three years warranty
0

Product stability ensured

Extremely easy to install and use

Minimal maintenance required

ON REQUEST

Increased table diameters and heights

Smart touch control panel

Load capacity up to 2000 kg

...and much more​

effe3ti packaging made in Italy

DESIGNED AND MADE BY EFFE3TI

Wrapping machine equipped with motorized pre-stretch (in version with 1 or 2 motors) for film tensioning, which allows maximum savings in consumables (up to 400%).

With a production capacity suitable for medium-sized companies, the Spinny S300 is an extremely robust pallet wrapper, requires extremely little maintenance and is easy to use.



TECHNICAL SPECIFICATIONS

  • Rotary table diameter 1500 mm, 1650 mm, 1800 mm, 2200 mm; load capacity up to 2000 kg
  • Distance between column and rotary table 500 mm
  • Winding height 2100 mm, 2600 mm, 3100 mm detected by photocell
  • Table rotation regulated by inverter
  • Sensor controlled table stop position
  • Customizable variable carriage movement speed
  • Anti-fall system for reel trolley
  • Work cycles controlled by PLC and electronic board
  • Voltage: 230 V single phase On request, 400-415 V three phase 10%
  • Frequency: 50 Hz
  • Installed power: 1.3 kW
  • Auxiliary power supply: 24 V DC
