Reel holder with MOTORIZED PRESTRETCHING with 1 or 2 engines.
Anti-fall system on the reel trolley
TOUCH SCREEN control panel
Work cycle programming
Adjustable table and carriage speed
Pallet height detected by photocell
Minimum capacity kg
0
Wrapping height (optional)
0
Up to three years warranty
0
Product stability ensured
Minimal maintenance required
Extreme ease of use
ON REQUEST
Diametri tavola fino a 2200 mm
Load up to 2000 kg
Stabilizing press
…and much more
Designed and developed to collect in real time on a Cloud platform the data produced by the new machines with a latest generation control panel. Data is collected, processed and shared to monitor production, performance, consumption, machine status and produce statistics.
Playlist
3 Videos

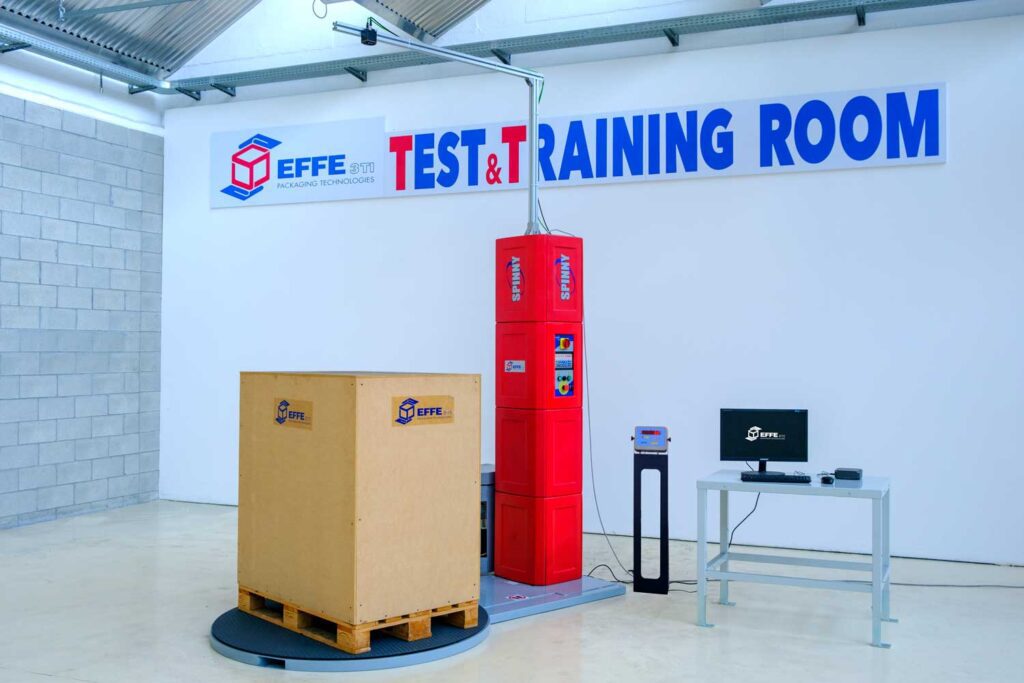

DESIGNED AND MADE BY EFFE3TI

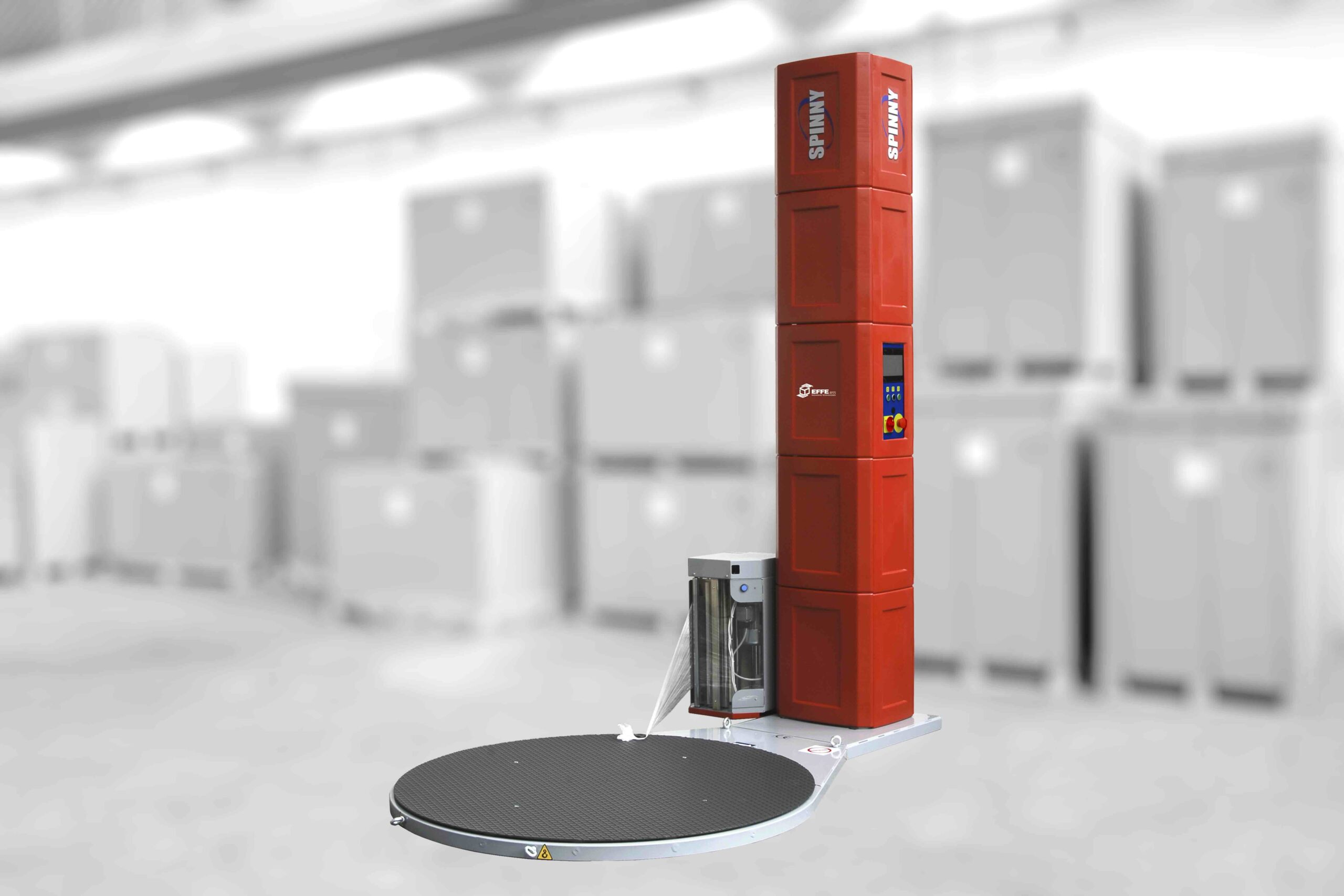

Pallet wrapper equipped with motorized pre-stretch (in version with 1 or 2 motors) for film tension, which allows maximum savings in consumables (up to 400%). Extremely robust wrapping machine, requires extremely little maintenance.

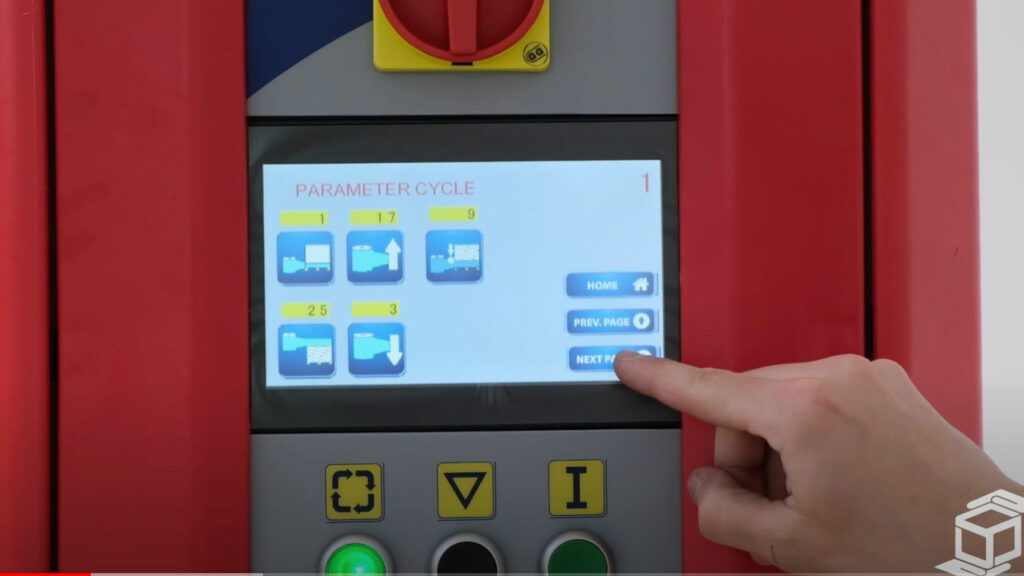

Spinny S350 Touch Screen è dotata di pannello di controllo Touch-screen di ultima generazione.
TECHNICAL SPECIFICATIONS
- Rotary table diameter 1500 mm, 1650 mm, 1800 mm, 2200 mm; load capacity up to 2000 kg
- Distance between column and rotary table 500 mm
- Winding height 2100 mm, 2600 mm, 3100 mm detected by photocell
- Table rotation regulated by inverter
- Sensor controlled table stop position
- Customizable variable carriage movement speed
- Anti-fall system for reel trolley
- Work cycles controlled by PLC and electronic board

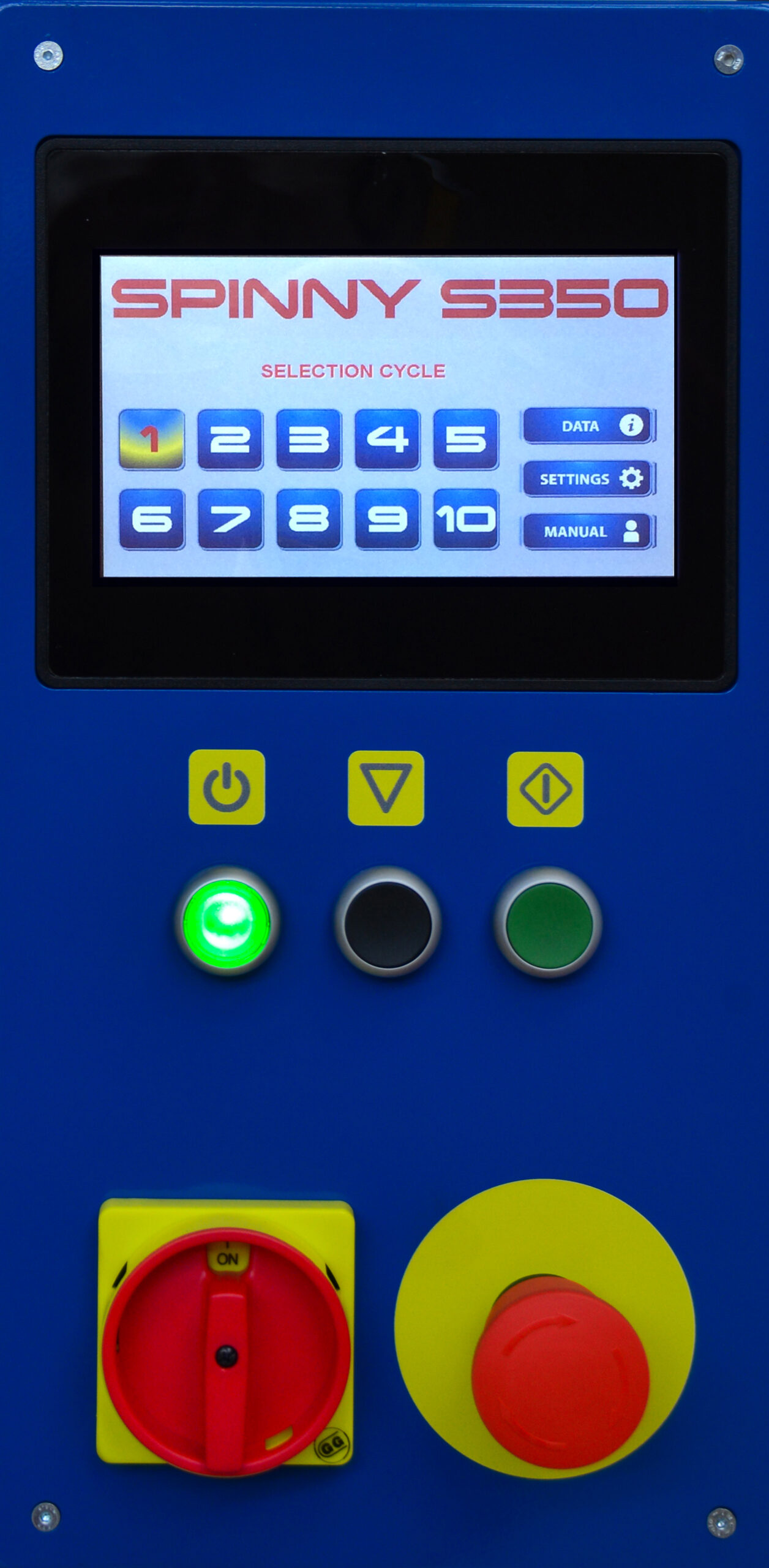

- Touch-screen control panel
- Voltage: 230 V single phase. On request, 400-415 V three phase 10%
- Frequency: 50 Hz
- Installed power: 1.3 kW
- Auxiliary power supply: 24 V DC
